General Description

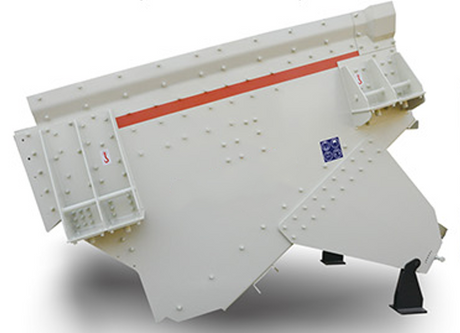

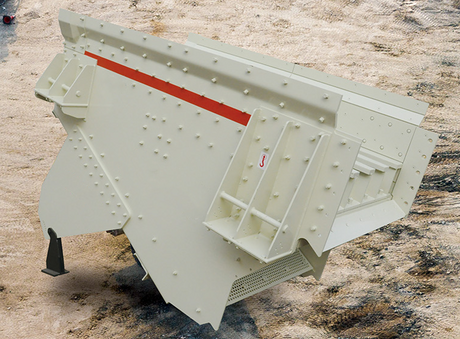

VG series impurity removal screen can be used in bad working conditions, it can equipped with fixed and exciting equipment, greatly improve the screening effect. Adjustable speed and amplitude, with high screening efficiency.
Advantage and Feature
1. Linear vibration, high acceleration (5.5g).
2. Rubber shock absorber spring, smooth stop.
3. Centralized lubrication, optional frame.
4. Safe and reliable, long life, no noise.
Specifications
| VG Series Impurity Removal Screen | ||||||
| Model | Width * Length （mm） | Power （kw） | MV Vibration Exciter | Production Capacity （tph） | Maximum Feed Size (mm) | Matched Crushing Host |
| VG1340 | 1300 * 4000 | 15 | MV2 | 600 | 900 | C100 C110 |
| VG1635 | 1600 * 3500 | 22 | MV3 | 750 | 1000 | C110 C125 |
| VG1645 | 1600 * 4500 | 30 | MV4 | 1000 | 1200 | C140 C160 |
| VG2060 | 2000 * 6000 | 55 | 2 * MV3 | 1500 | 1500 | C160 C200 |
